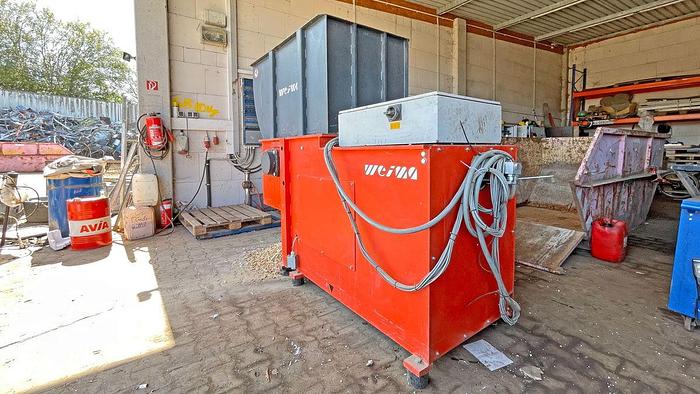

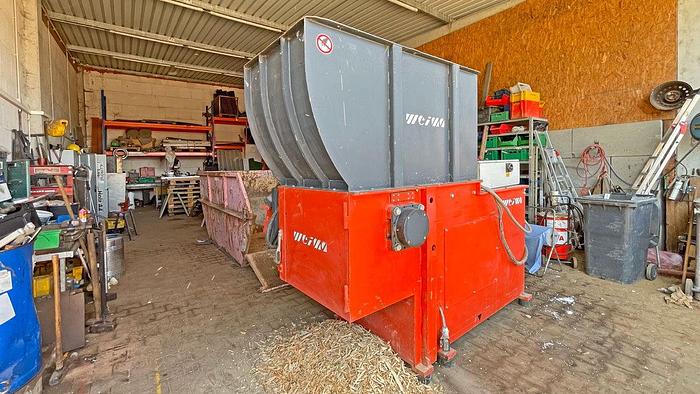

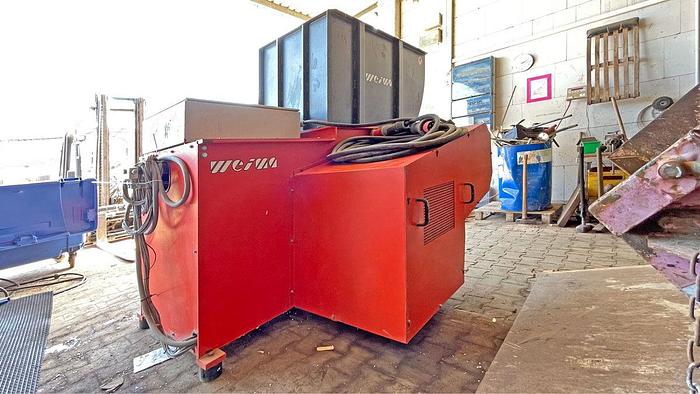

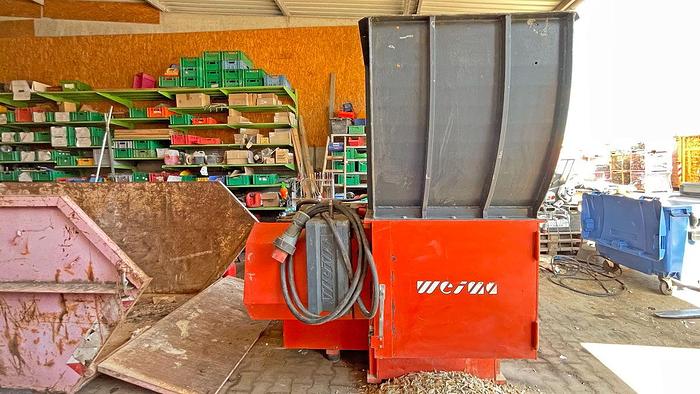

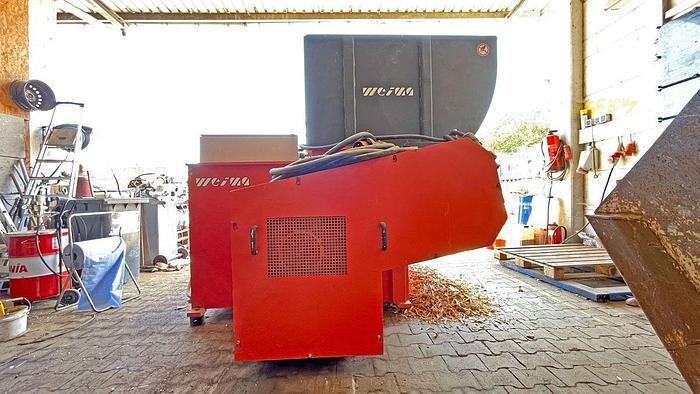

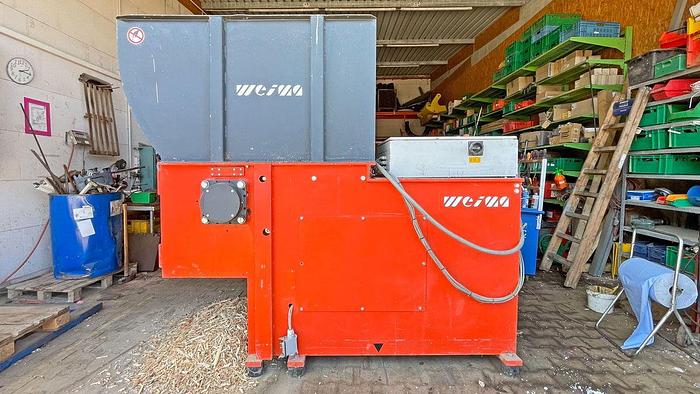

WEIMA WLK 800 SINGLE SHAFT SHREDDER

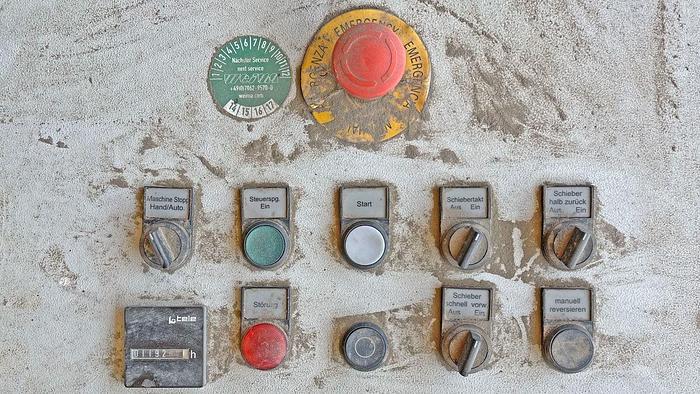

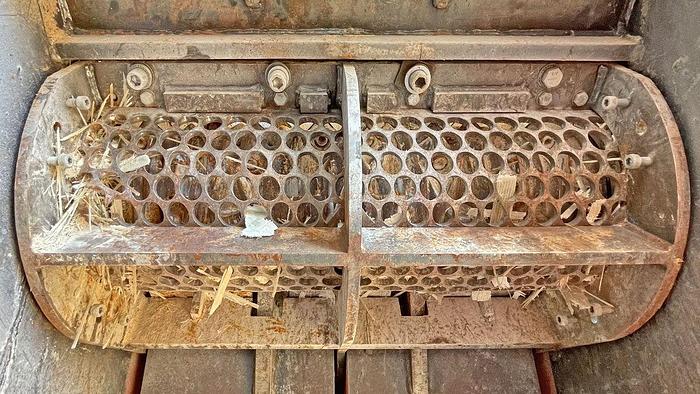

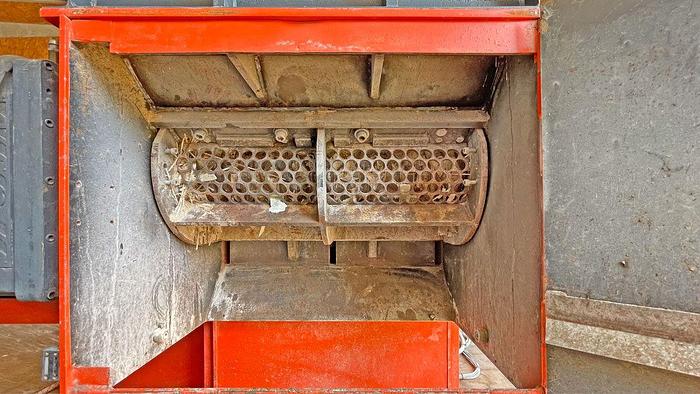

WEIMA single shaft shredder Type WLK 800 Year 2018 Operating hours 1,192 hours Drive power 30 kW Speed 90 rpm Rated current 70 A Slow-blow fuse 80 A Hydraulic pressure for horizontal slide 160 bar, load-dependent or pulsed control selectable Rotor type profiled V-rotor Rotor diameter 260 mm Rotor length 800 mm Rotor speed 80 - 125 rpm Number of cutting crowns, concave, 2-row, 42 pieces Cutting crown size 40 x 40 mm Grain size 15 - 80 mm Feed opening 800 x 1450 mm Cutting chamber dimensions 720 x 700 mm Hopper capacity 0.8 m³ Machine dimensions 2,590 x 1,745 x 2,180 mm PLC control Siemens SIMATIC S7-1200 Screen basket with 30 mm hole size, can be folded downwards Segmented floor 2-sided Free-cutting hopper Electromechanical drive with WEIMA WAP gearbox Hydromechanical starting clutch V-rotor (2-row) Adjustable counter blade for regulating the cutting gap Reversible counter blade Remote bearing for easy maintenance
