WEIMA WL 4 Year 2024

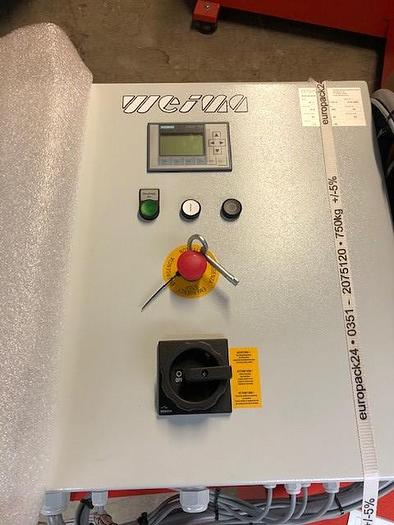

WEIMA single shaft shredder WL 4  Year 2024 Technical specification WL 4 Funnel opening 600 x 800 mm Funnel opening with log spacer 600 x 1,050 mm Funnel capacity 0.6 m³ Working width of the rotor 600 mm Diameter of the rotor 252 mm Drive power 18.5 kW Rotor speed 80 -120 rpm Number of blades 28 pieces Type and size of blades concave / 40 x 40 mm Cutting crowns Screen perforation 15-20 mm Connection value 400 V +/- 5% / 50 Hz Weight approx. 1,300 kg Includes: Control cabinet* (Rittal) including electrical control (Moeller / Siemens) and Star-delta start Rubber oscillating elements V-rotor (patented) with knife pockets milled into the profile Gear limit switch Slider cycle Slider halfway back Log spacer funnel 2nd row of knives
