VERTICAL MIXER 20 m3

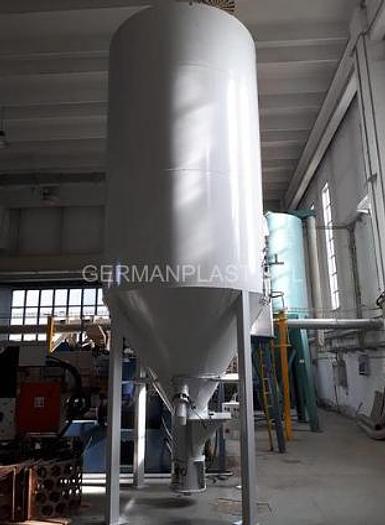

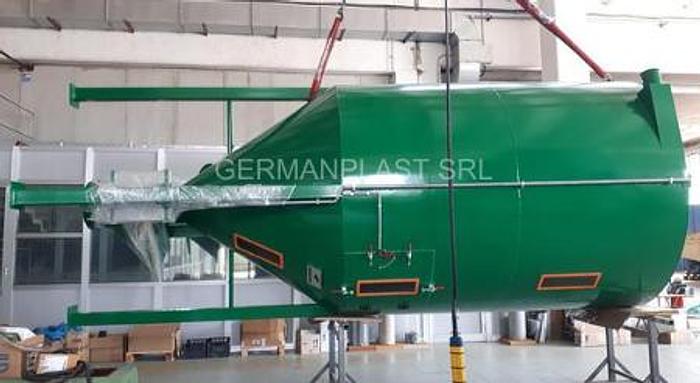

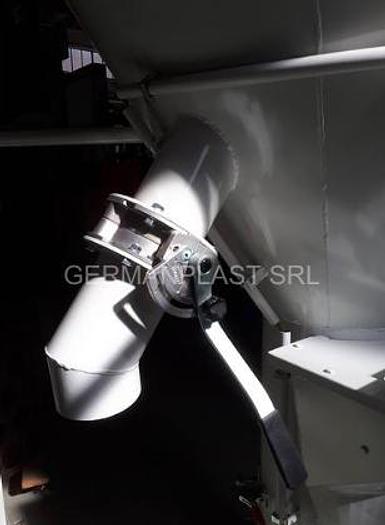

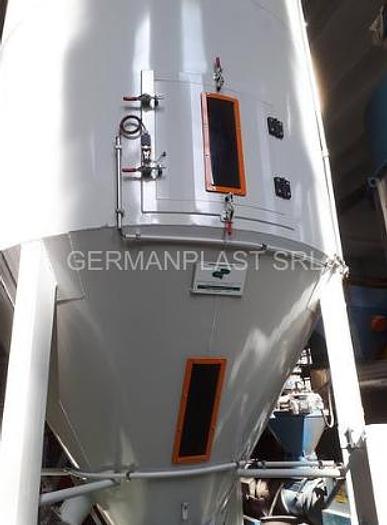

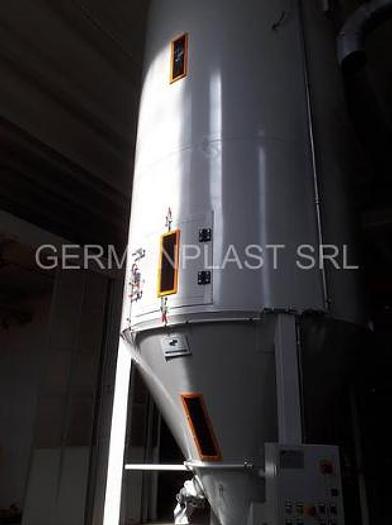

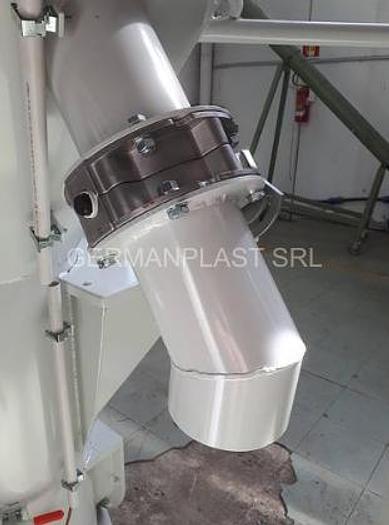

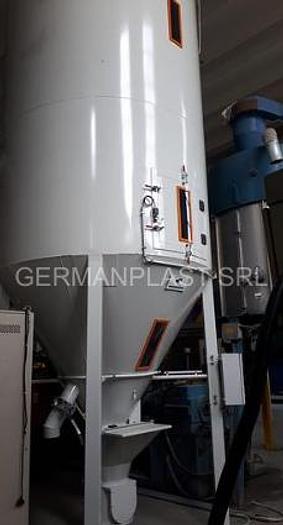

VERTICAL MIXER 20 m3 capacity total height approx 7.000 mm including transmission group (can be customized) max Ø 2.400 mm. (standard transport) constructed in painted electro-welded carbon steel. inner auger diam. 350 mm. lower loading hopper with safety grid and sampling shutter, complete with anti-dust cover, mm. 600x500 pulley and belt transmission, protected by carters inspection doors with safety limits cleaning hinged door with on bottom of cone for complete discharging, with safety opening side discharging pipe to big bag with valve mm. at 2.500 mm from ground max electric level indicator, paddle type automatic lubricating kit electric motor 15 kw complete with control panel. electric voltage: 400 V, 50 Hz, auxiliaries a.c. 24 V CE compliance, drawings and instructions manual in English. Possible additions: wheeled slide, feeding screw and hopper, extraction auger, big bag weighing station, magnet...
