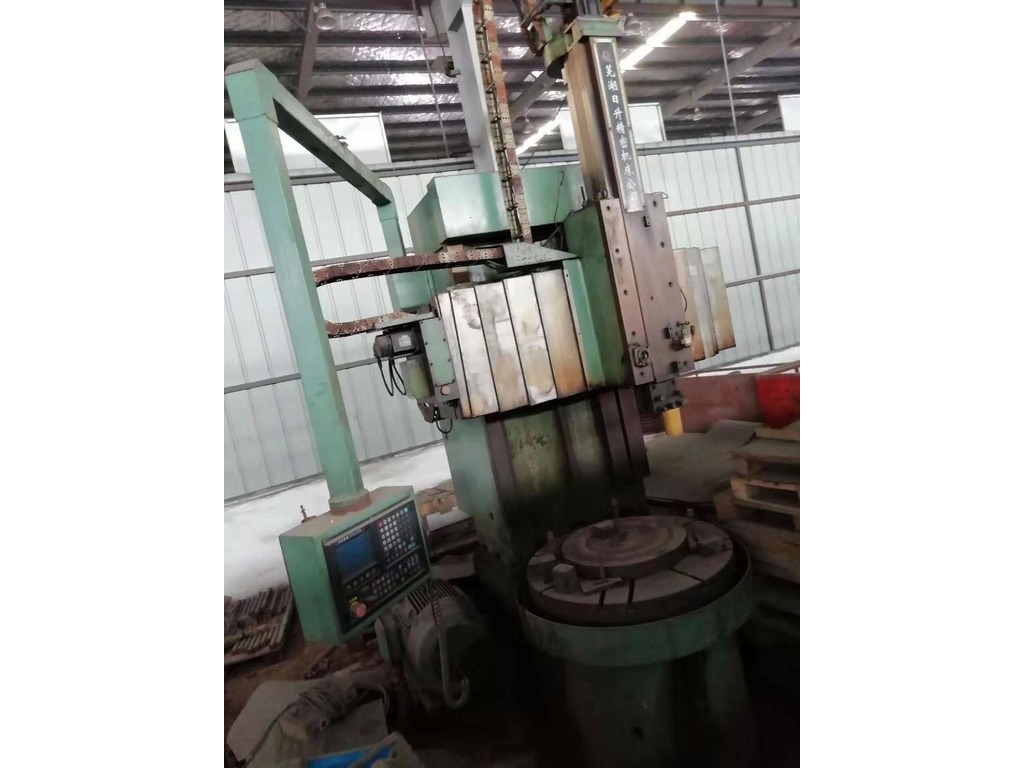

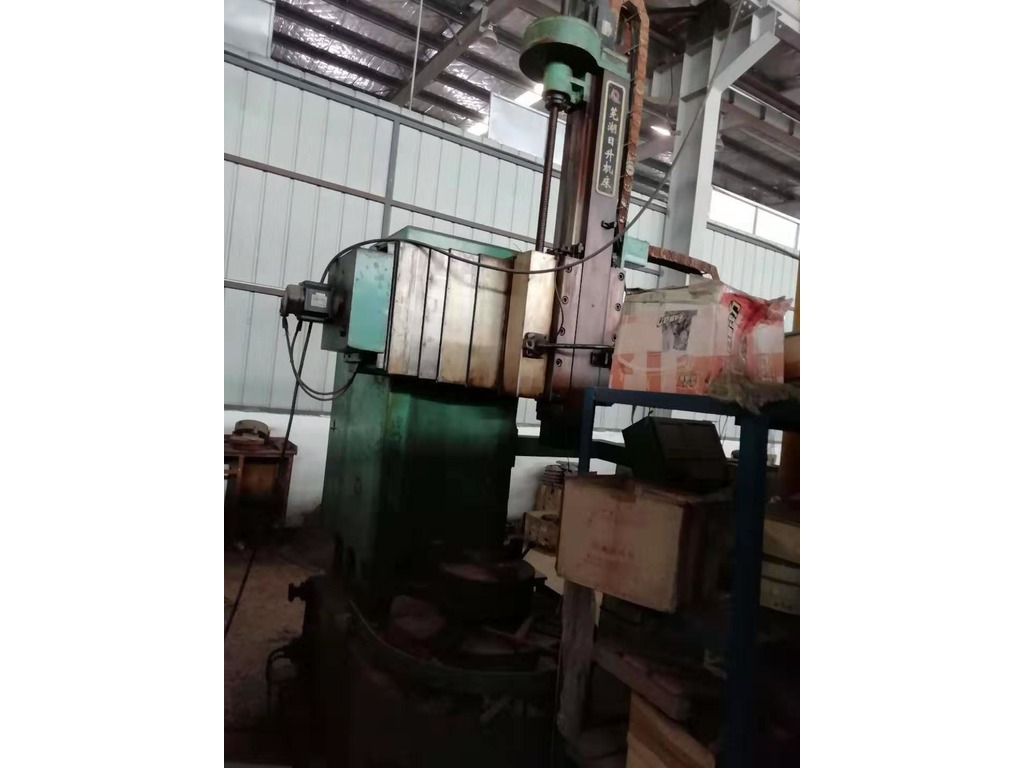

TORNI VERTICALI CNC USATO

The parameter name 单位 CK5110D Max. turning diameter mm φ1000 The maximum height of workpiece mm 1150 Crossbeam lifting distance mm 850 Holder of moving distance mm 620 Vertical movement distance mm 750 The maximum rotating diameter of workpiece mm φ1100 The working surface diameter mm φ1000 Maximum workpiece weight kg 1200 Speed of working table series 级 6 The workpiece table speed range r/min 32-127 The amount of feed series 级 无级 Range of feeds mm/min 0-500 CNC system Beijing Kaine di K1000Ti-A CNC system X axis servo motor The same system configuration Z axis servo motor The same system configuration Minimum setting unit mm 0.001 The minimum movement unit mm 0.001 Repeat positioning accuracy mm 0.005 Electric tool LCD-320 (4/6 HTC knifes) The main motor power kw 15 Weight of machine kg 7500 Overall dimensions (length * width * height) mm 2320*2000*3200
