TANKER TRUCK LOADING SYSTEM

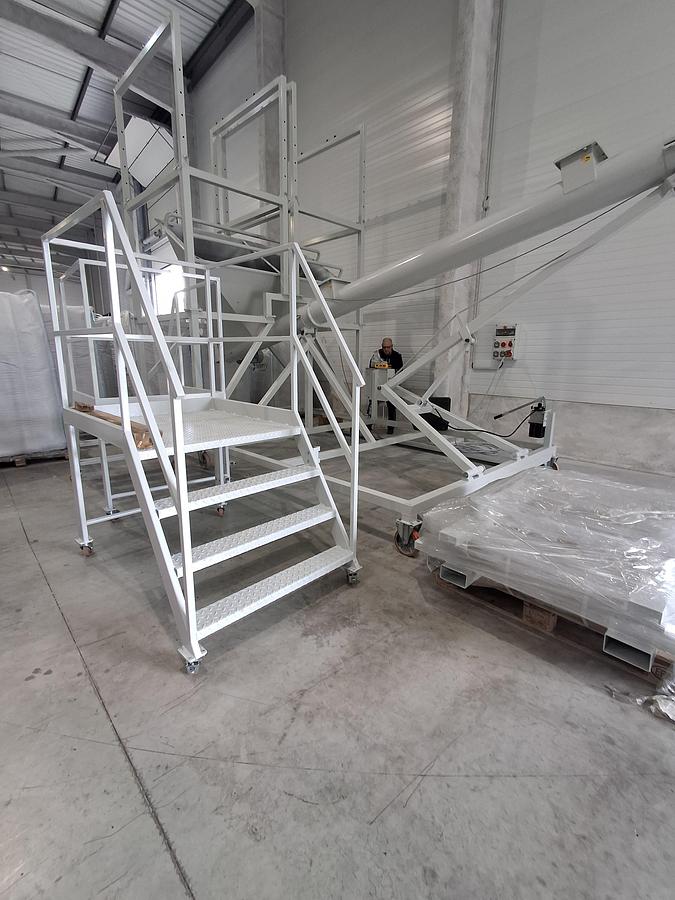

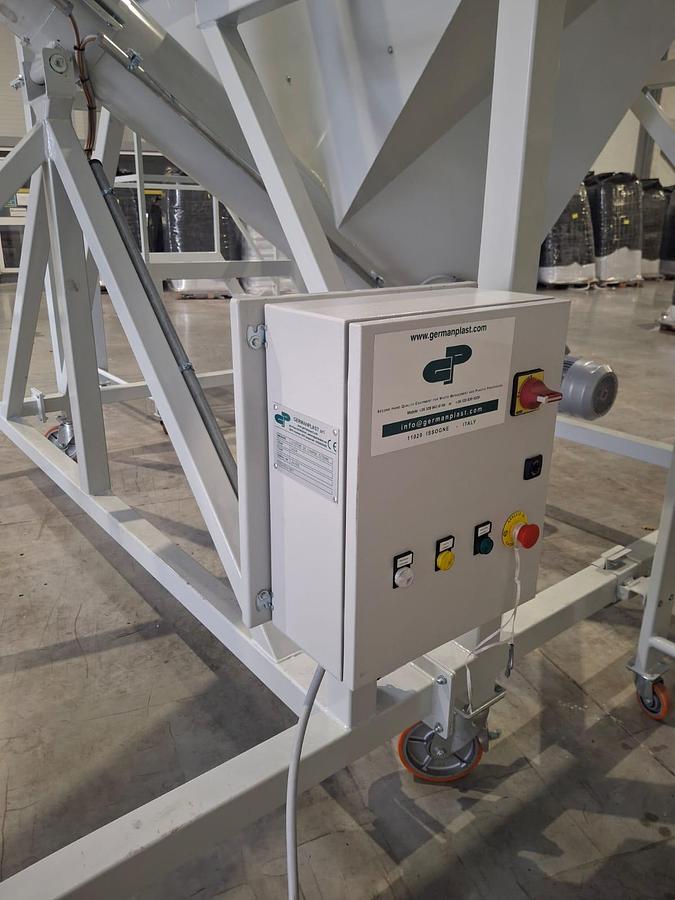

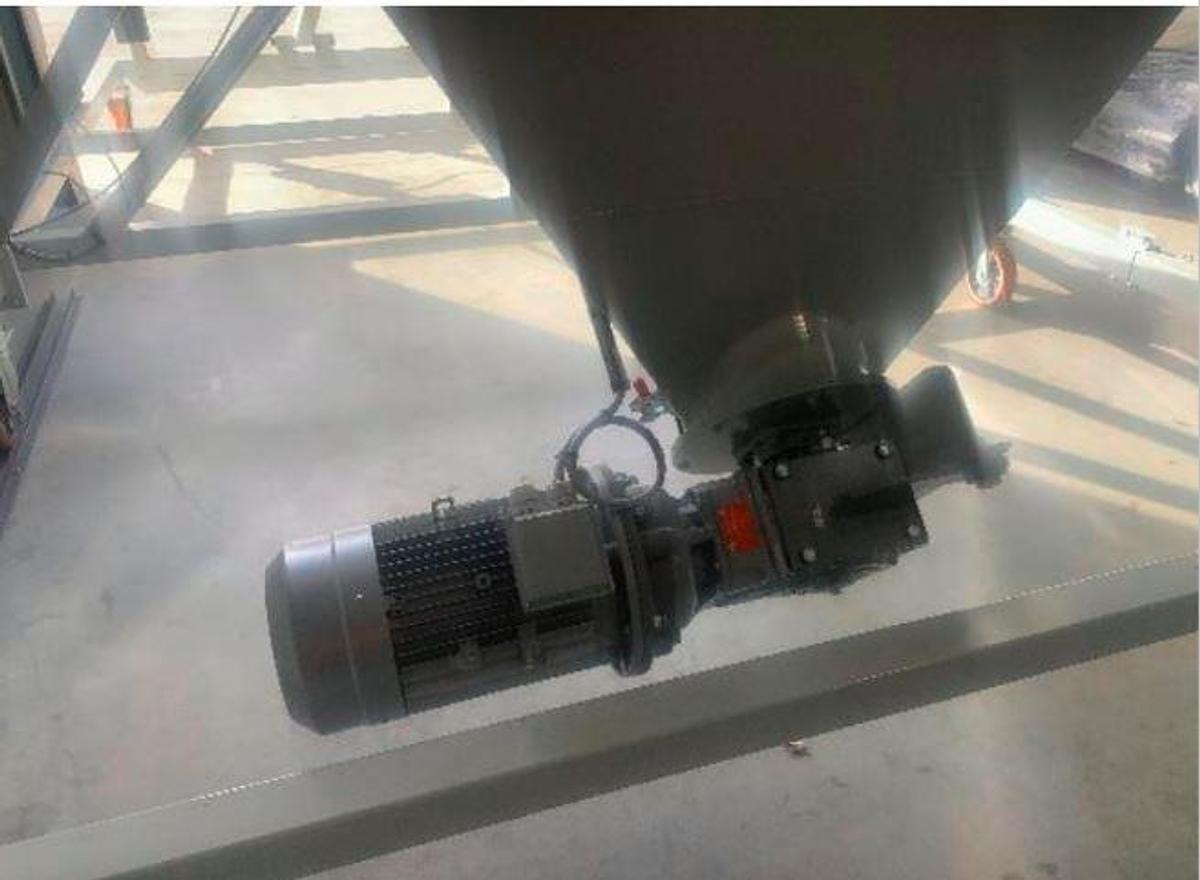

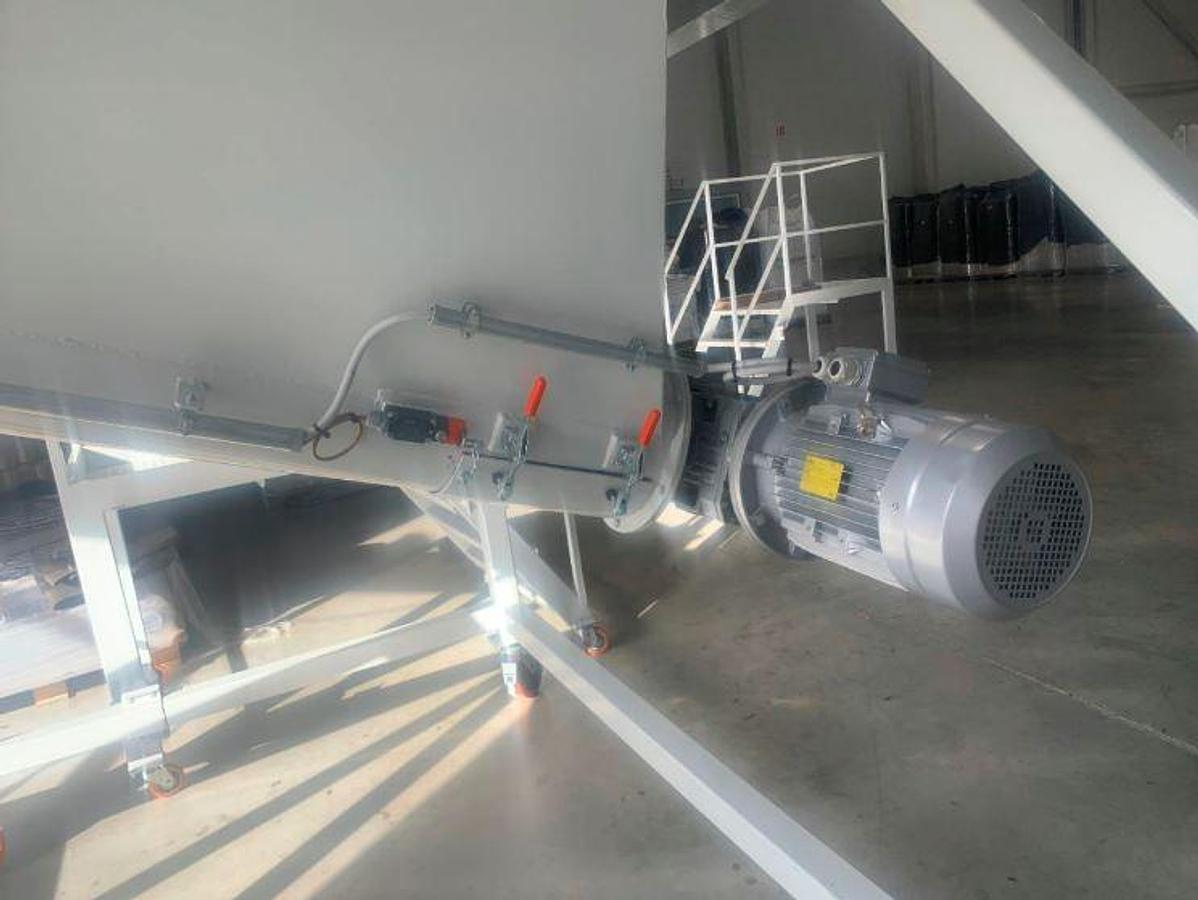

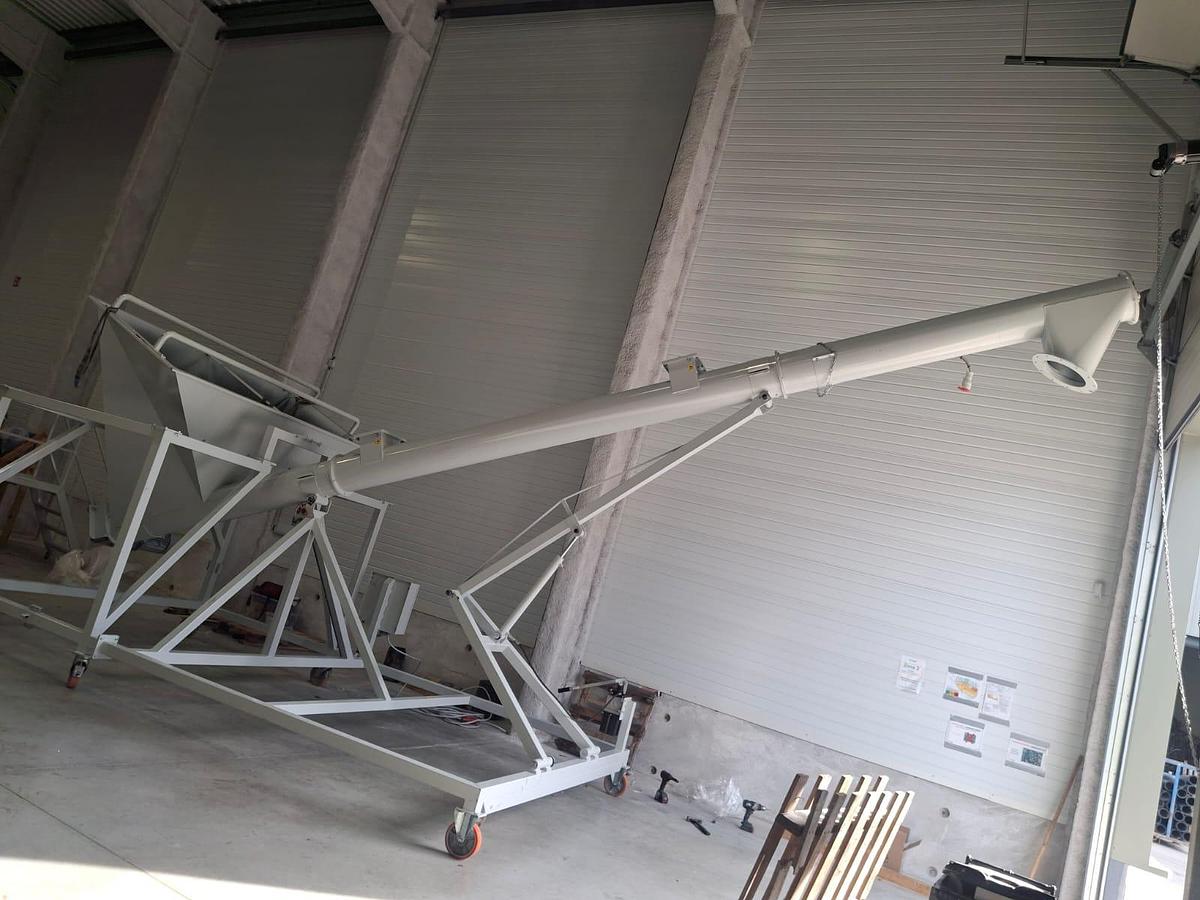

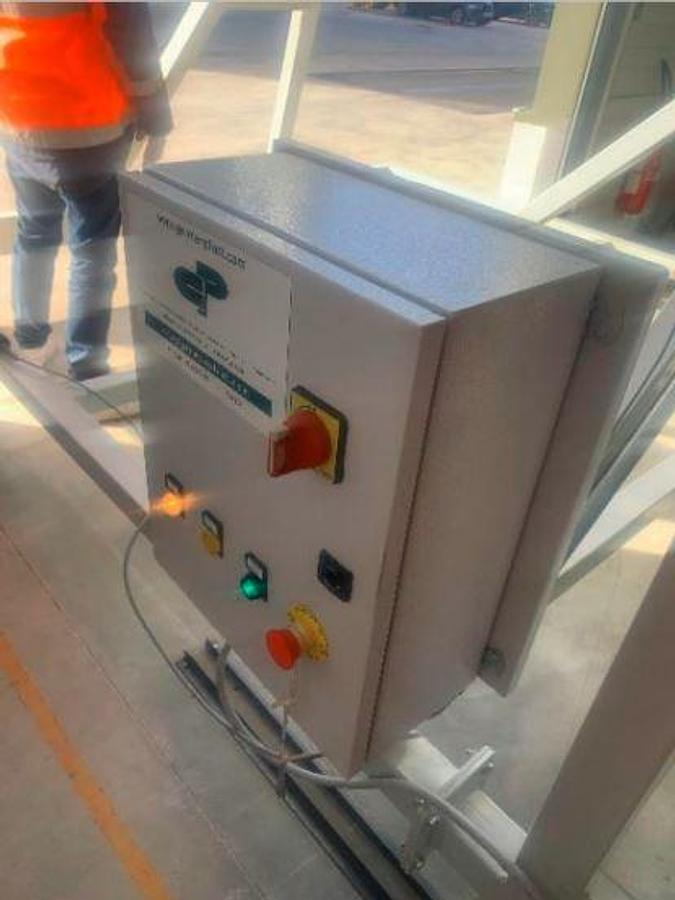

TANKER TRUCK LOADING SYSTEM for plastic granules Loading speed 60 m3/h Made in sturdy painted carbon steel structure including two big bag supporting structures n.2 frames to fix the bags on the structure by lifting the pre-hooked frames The height of the structures can be adjusted to suit the size of the big bags, and two side ladders provide easy access to the top of the structure. The two bags rest on safety supports to prevent hands from being crushed when the bottom is opened. Sturdy hooks hold the big bag straps in place. 1.000 x1000 mm. hopper to collect the material from the big bags. A flap door at the bottom, with a safety micro, facilitates maintenance and cleaning operations. the 7,5 kw driven screw will lift material from the hopper Discharge height 4,5 m. from floor Screw length 8.300 mm The bearings are dust-tight and automatically greased. at the end of the screw, a standard flexible pipe will be positioned inside the tanker opening by the operator. The pipe includes a capacity sensor that, when the level is reached gives a sound/visual alarm.operated by control panel with safety devices and emergency stop button The entire structure is mounted on 6 cast-iron wheels with brakes. For a simpler loading system, please see our ref. GE751-GE752-GE753 Available also in AISI304 stainless steel
