SELEZIONATRICE PONDERALE PRISMA 08D3 (BIL-96)

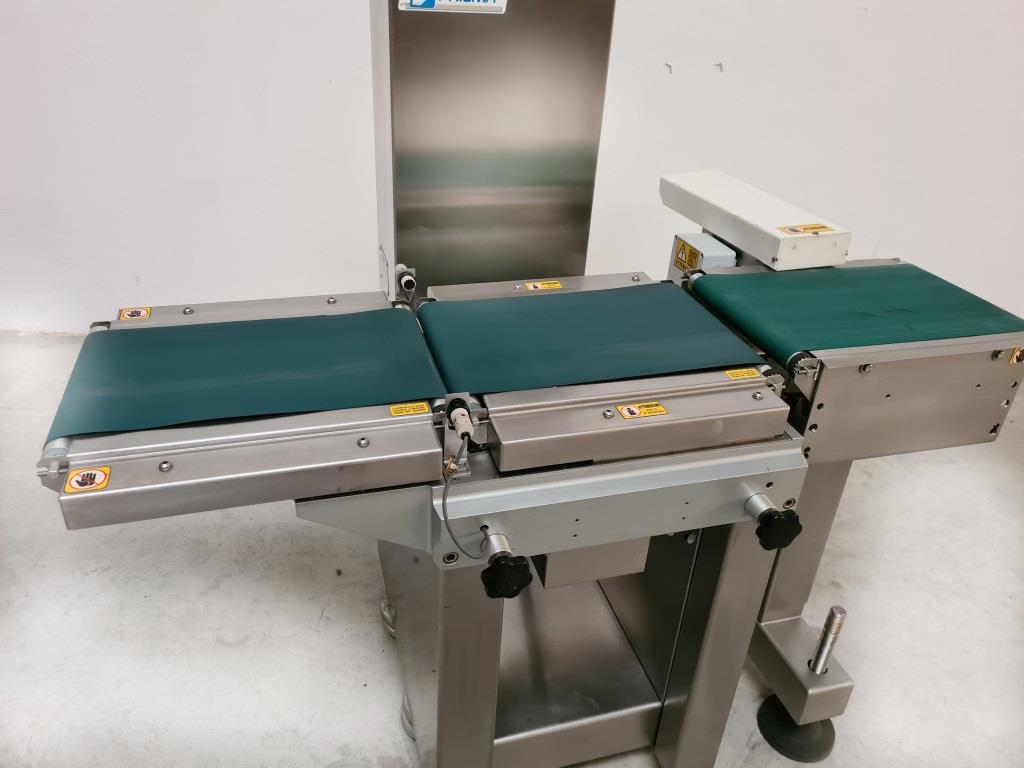

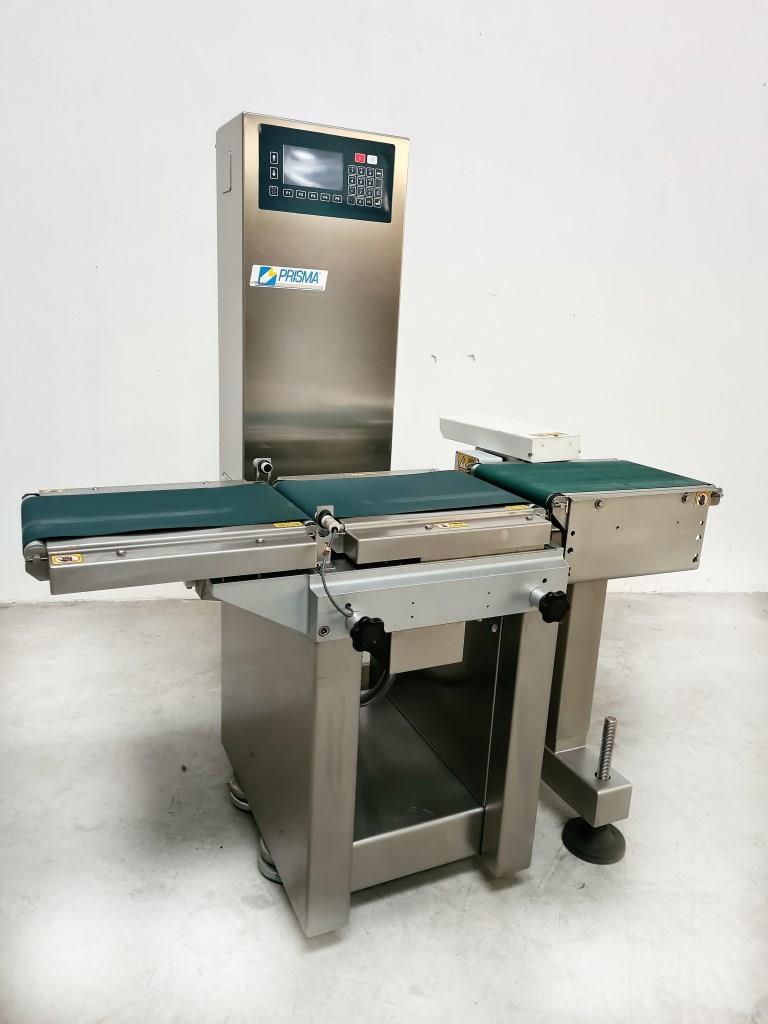

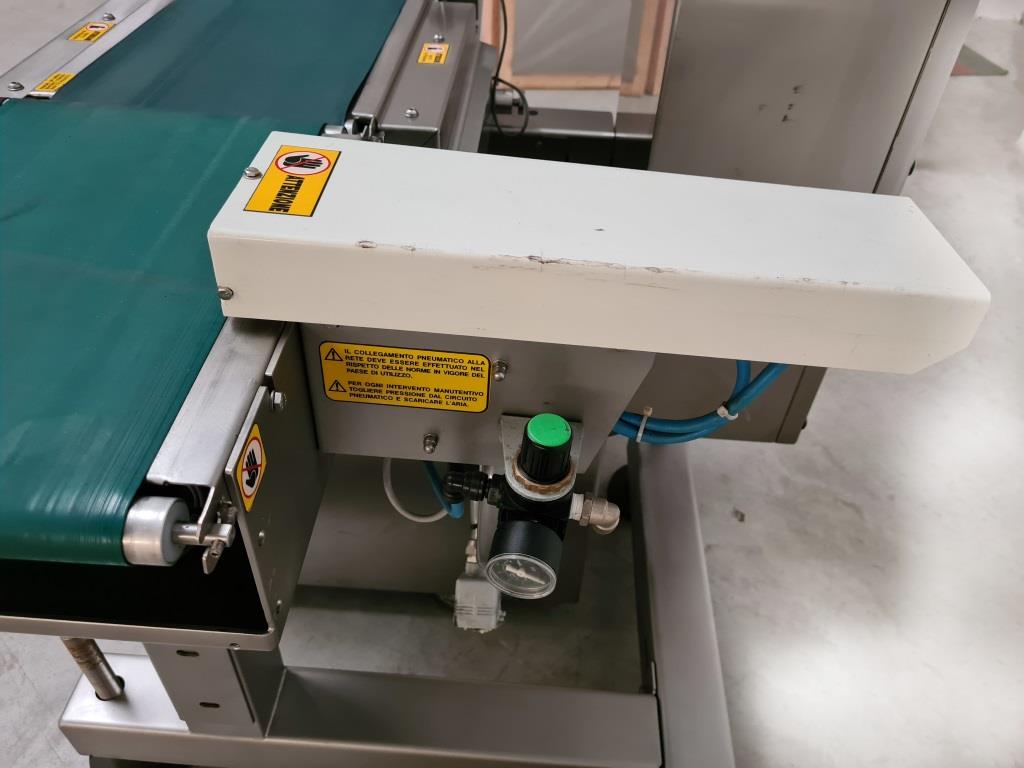

BILANCIA DI LINEA / SELEZIONATRICE PONDERALE – PRISMA – MOD. 08D3 (COD. MF-PK-BIL-96) DESCRIPTION: The checkweigher for continuous weight control is made up of two structures on which are located the weight detection system on which the weighing conveyor weighs and the deviation system for incorrect packages. There is a feed conveyor which has the task of equally spacing the incoming packages and an output conveyor located downstream of the weighing conveyor on which the ejection device is located which has the task of diverting the out-of-tolerance and non-weighable packages from the line. SECTORS OF USE: Pharmaceutical, chemical, cosmetics, food, dietary, medical devices, manufacturing. MAIN FEATURES: The checkweigher is part of a transporting line that controls objects of any type and shape. Going through the weighing surface takes a certain time. Although very short, this time is enough for the scales to take on a position that is proportioned to the weight of the product. After reading the weight, the packages pass on the outfeed conveyor on which the diversion system is located. The machine is not dependent on the downstream machine. The speed of the conveyor belts is adjustable. Year of construction: 2003 TECHNICAL DATA Max. capacity g 1600 Weight Kg 170 Voltage Volt 230 Frequency Hz 50 Power absorbed Kw 0,7
