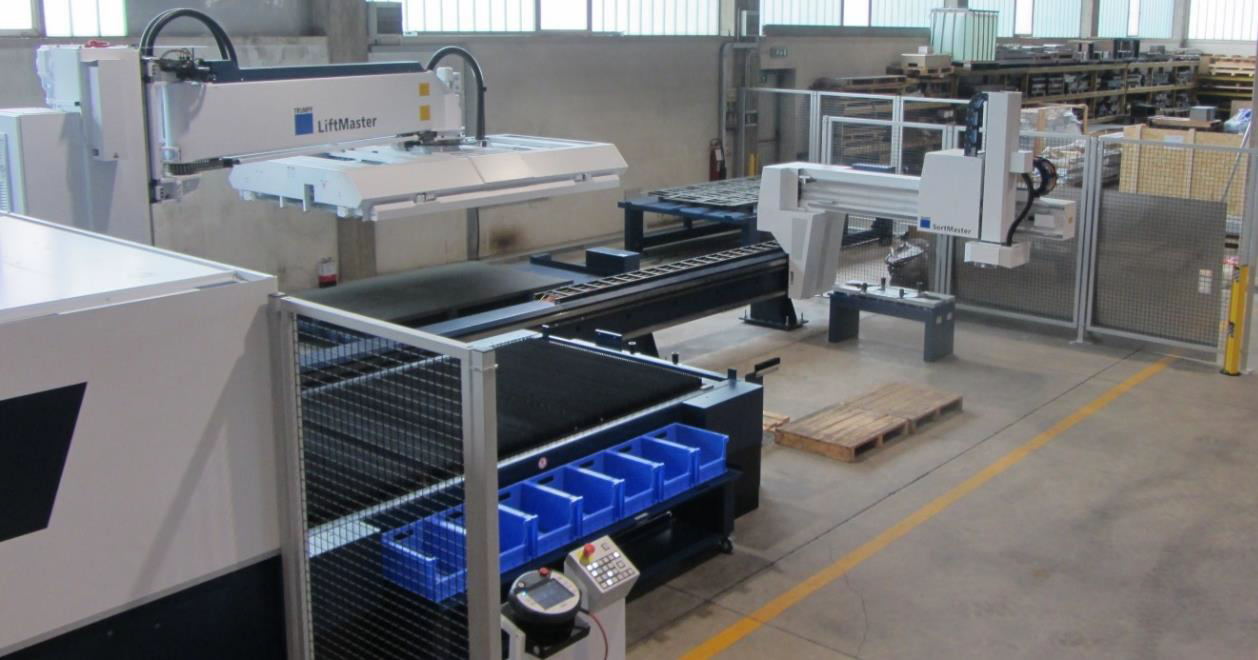

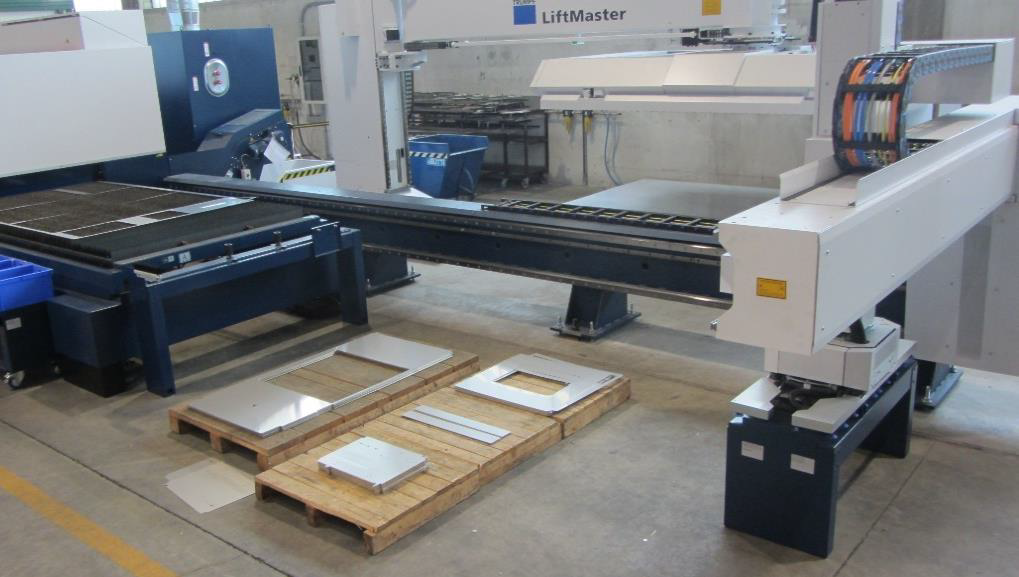

Laser Trumpf Trulaser3030 con LiftMaster e SortMaster

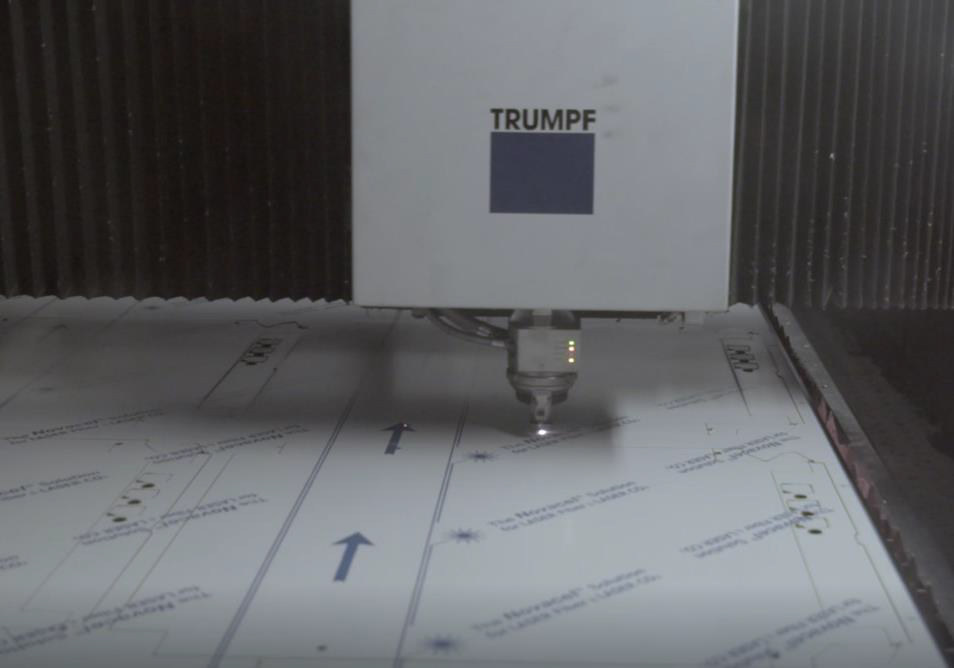

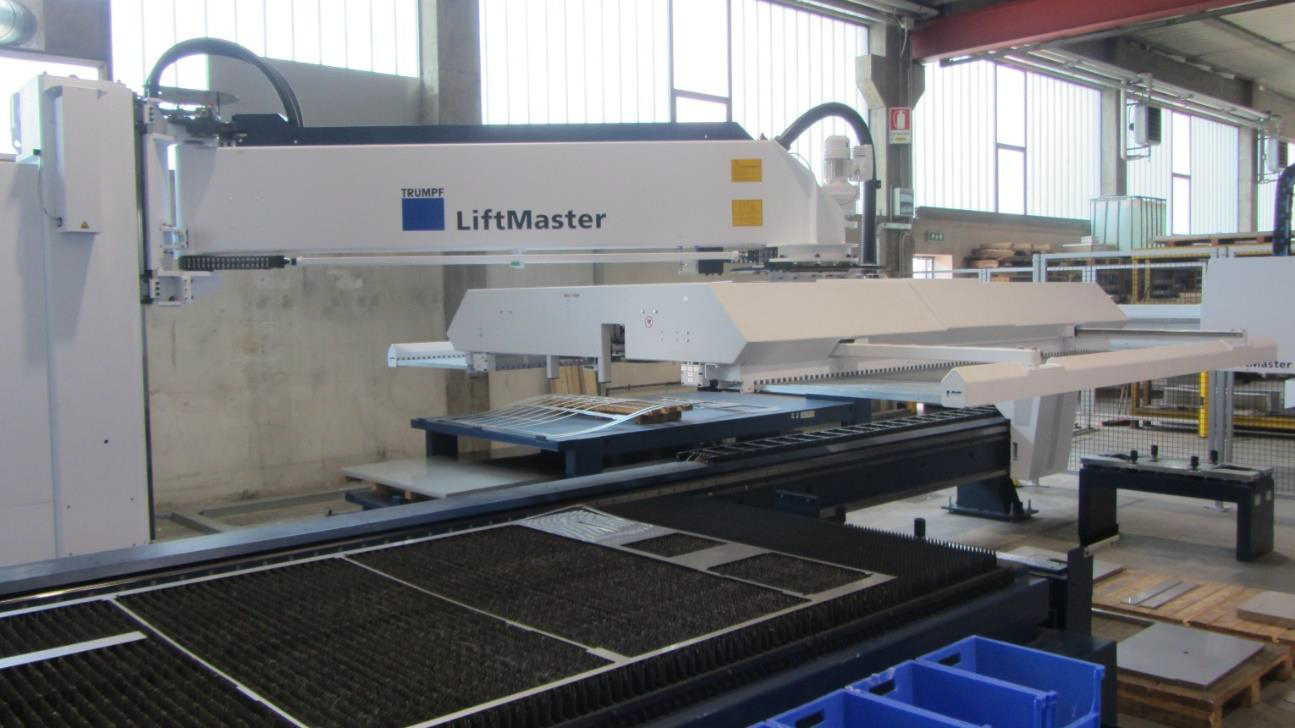

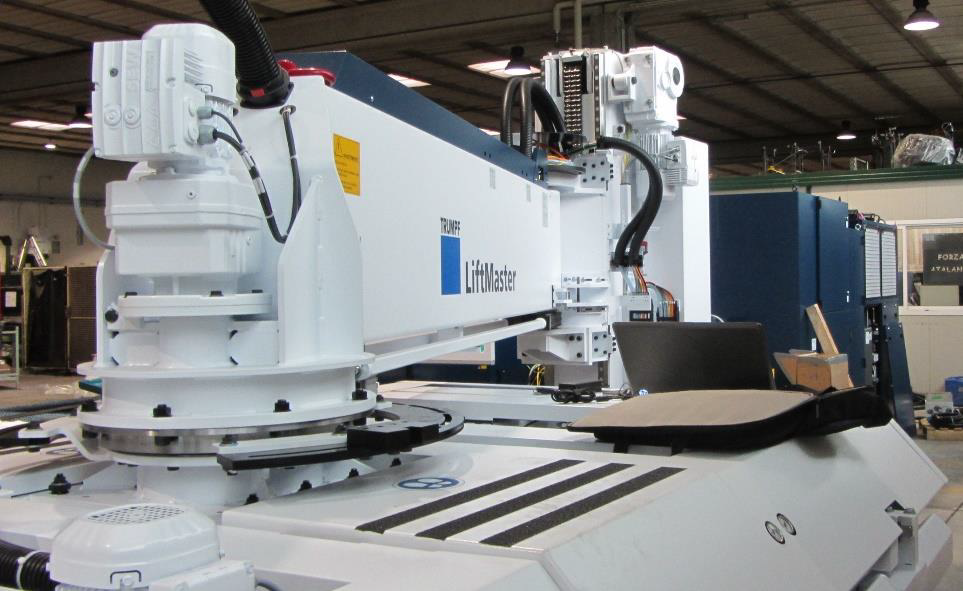

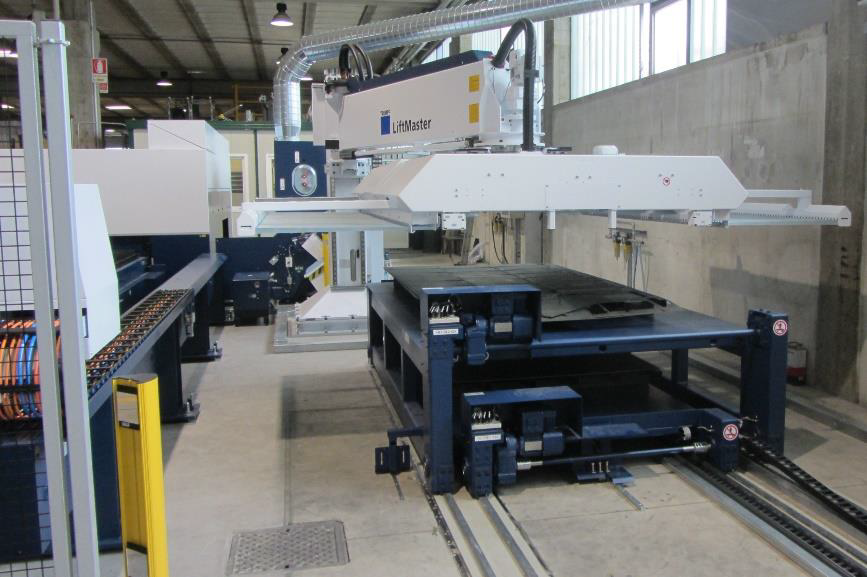

INFO TECNICHE LASER Tecnologia laser: Fibra, Laser TruDisk 3001 (FD22) V2 L4211E0054 Laser beam power: 3 Kw (3000 W) feed rates in the X/Y/Z axis: 3000/1500/115 mm positioning speed with simultaneous X and Y axis drives: 140 m/min maximum workpiece thickness (structural steel O2): 20 mm maximum workpiece thickness (stainless steel N2): 15 mm maximum workpiece thickness (copper O2): 6 mm maximum workpiece thickness (copper N2): 2 mm maximum workpiece thickness (brass N2): 6 mm maximum sheet metal weight: 900 kg positioning deviation (PA): ± 0.05 mm average positioning deviation (PS): ± 0.03 mm smallest programmable step: 0,001 mm laser cooling: closed cooling system automatic nozzle cleaning integrated technological data cutting with compressed air programmable cutting gas pressure automatic shutdown lifting roof laser beam wavelength: 1.03 μm work hours: 24854 h laser switch-on time: 13275 h compressed air connection: 7-10 bar average compressed air consumption: 35 Nm2/h nitrogen connection N2: 30 bar oxygen connection O2: 20 bar connection power: 40 Kva control voltage: 24 V power supply: 400 V; 50 Hz INFO TECNICHE LIFTMASTER • Carico o Formato max lamiera: 3000 mm x 1500 mm o Formato lamiera min: 1000 mm x 1000 mm o Spessore max della lamiera: 25 mm o Peso max lamiera: 900 kg • Scarico o Formato max lamiera: 3000 mm x 1500 mm o Formato lamiera min: 150 mm x 150 mm o Spessore max della lamiera: 25 mm o Peso max lamiera: 900 kg o Dimensione min del pezzo: 150 mm x 150 mm INFO TECNICHE SORTMASTER o Dimensione max del pezzo: 1000 mm x 1500 mm o Dimensione min del pezzo: 30 mm x 80 mm o Peso max del pezzo: 100 Kg
