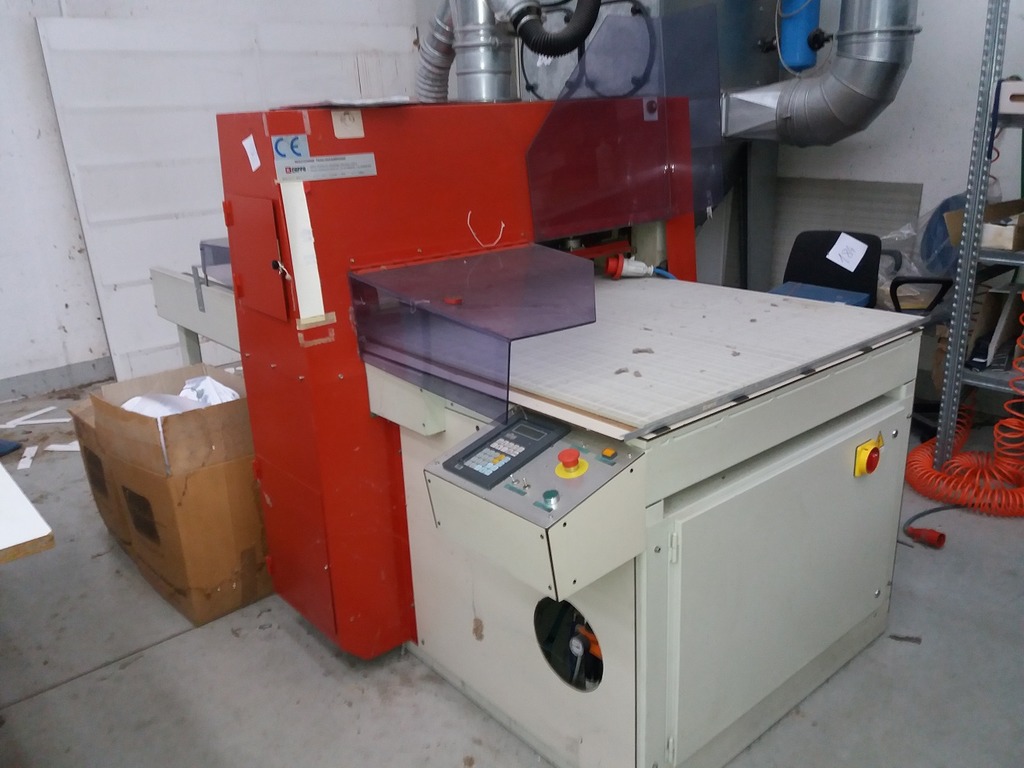

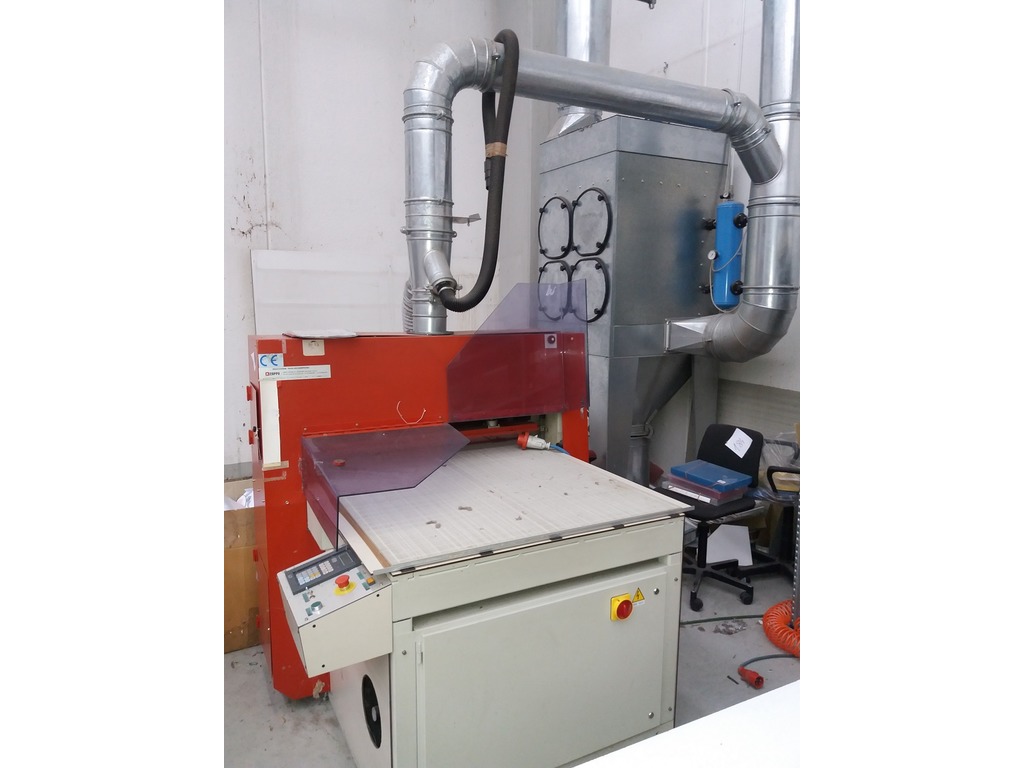

LASER sample cutting

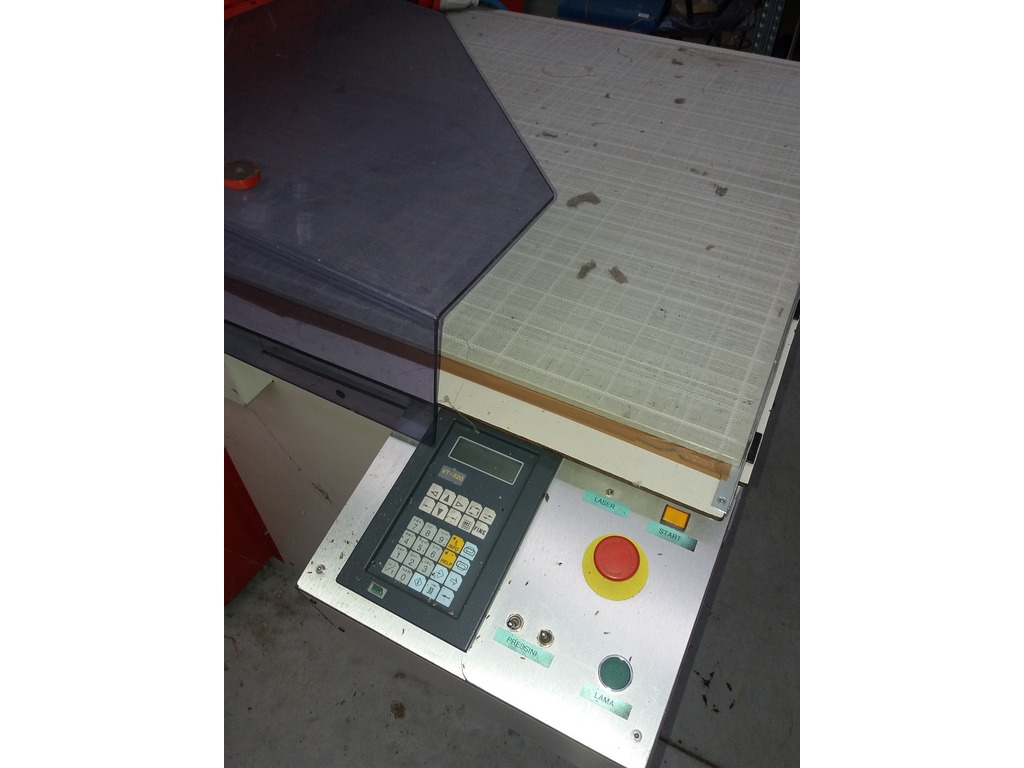

Descrizione Technical information 105 A Knife length: mm 1050 Cut: electro-mechanic Power: hp 4 Cut view-finder: laser cut-line indicator Pattern size: input in operator’s panel Cutting board feed: automatic through a brushless motor with acceleration and deceleration controlled Adjustable turntable speed for light weight textiles. Cutting board rotation: board is manually rotated. Adjustable chain tensioner: ensures the perfect moving of the cutting board. Lubrication: all machine parts are self-lubricating. Construction: fabricated steel. Dimensions (L, W, H): mm 2510 x x 1440 x 1500 Net weight: kg 1300 Optionals Pneumatic hold-downs: to allow a better pressure adjustment. Knife safety barrier: photocell to allow a more comfortable access to the machine.
