COMBINATED CUTTING LINE INTERMAC

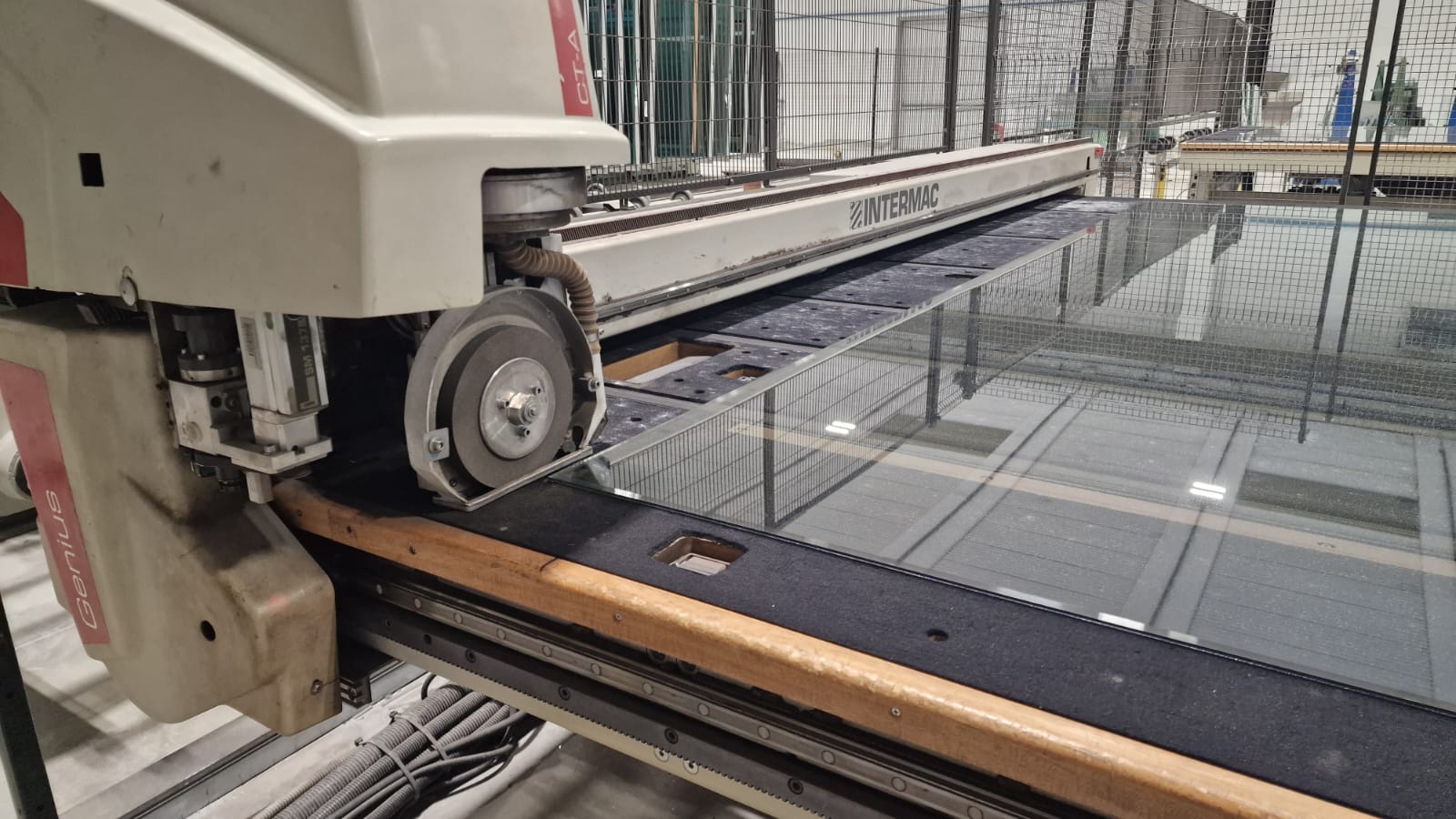

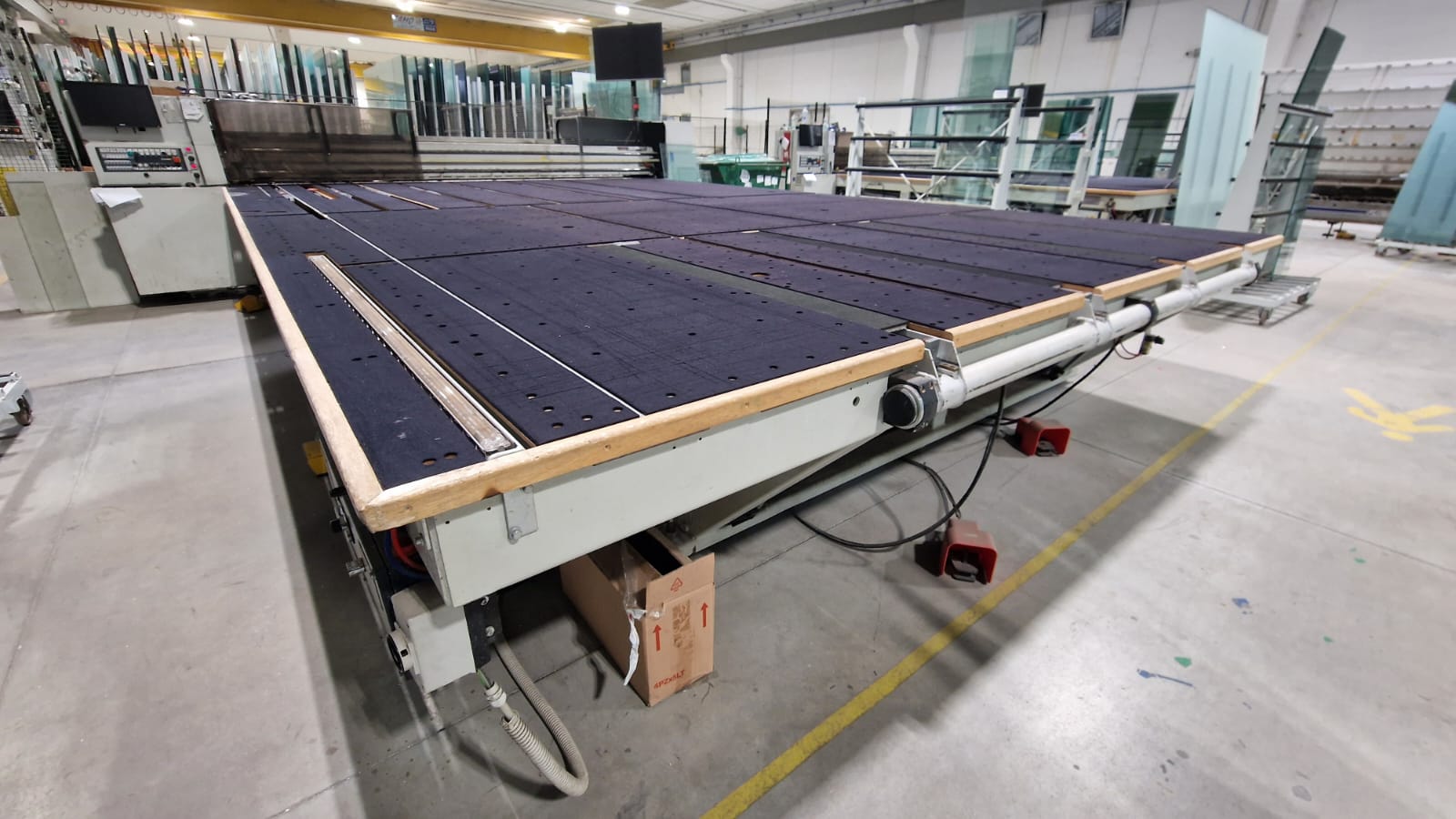

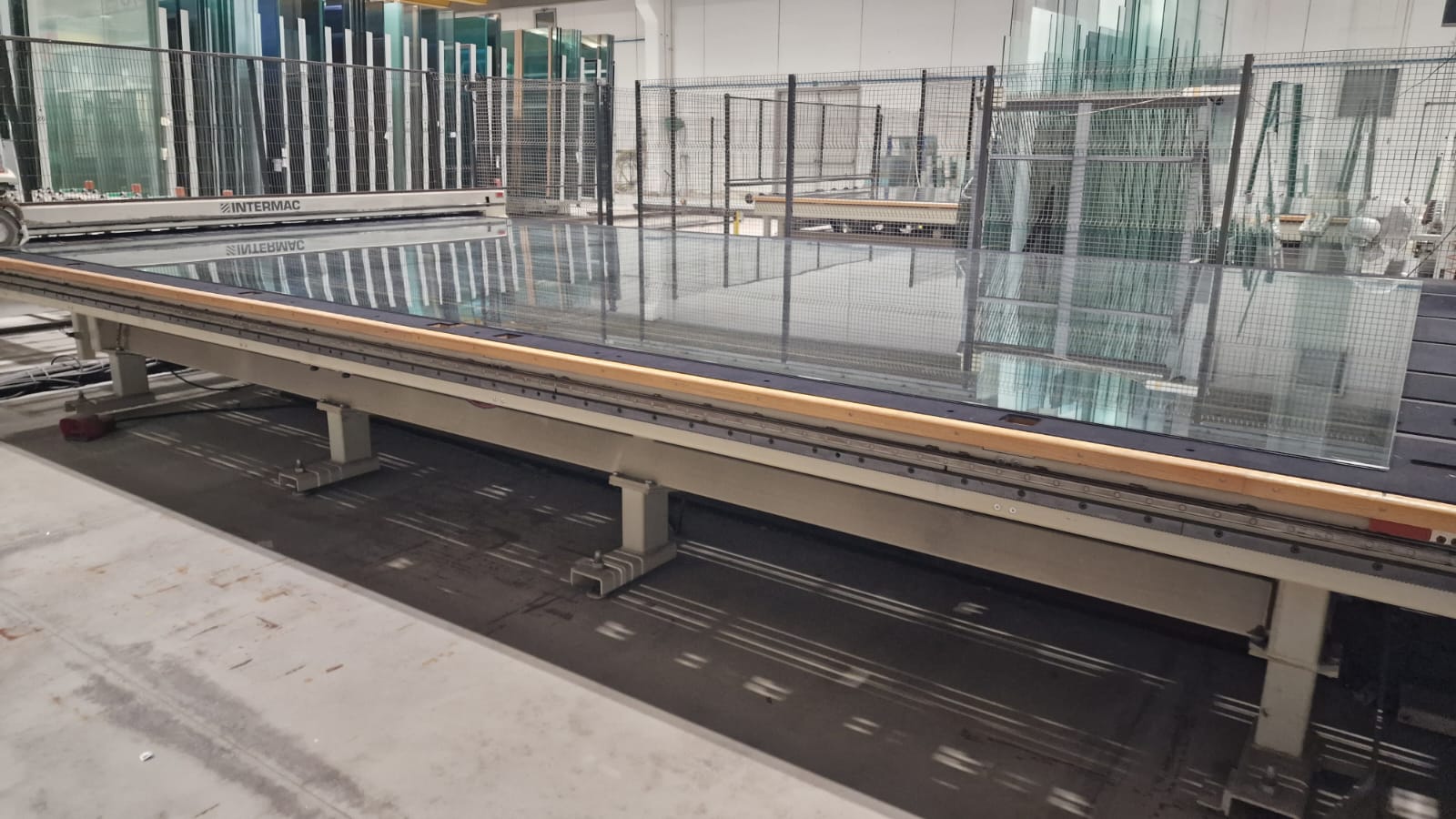

COMBINATED CUTTING LINE – Year 2017 INTERMAC GENIUS 61 CT Cutting Table for Monolithic Glass Shape Cut Machinable dimensions 6100 x 3355 mm Machinable thickness 2-19 mm Max axle movement speed 200 m/min Max acceleration 10 m/sec2 Precision of cut 0,15 mm Sheet transfer speed 40 m/min Work table height 900 mm Installed power 16,3 kW Overall weight 4150 Kg Low-E + INTERMAC GENIUS 37 LM-A Maximum effective cut length mm 3710 Minimum squaring mm 110 Maximum squaring (opt. 3210) mm 2750 Laminate sheet thicknesses mm 33.1 / 88.12 Float glass sheet thicknesses mm 3 - 10 Minimum breaking mm 60 Minimum separation mm 60 Maximum loadable sheet size mm 3710 x 2600 x 1010.4 Maximum loadable crosspiece mm 3710 x 2600 x 66.4 (300 kg) Max cutting speed m/min 150 Cutting accuracy mm +/- 0.5 Rectilinear optimisation optional Work table height mm 900 Single/dual lamp power requirements kW 20 Low-E
