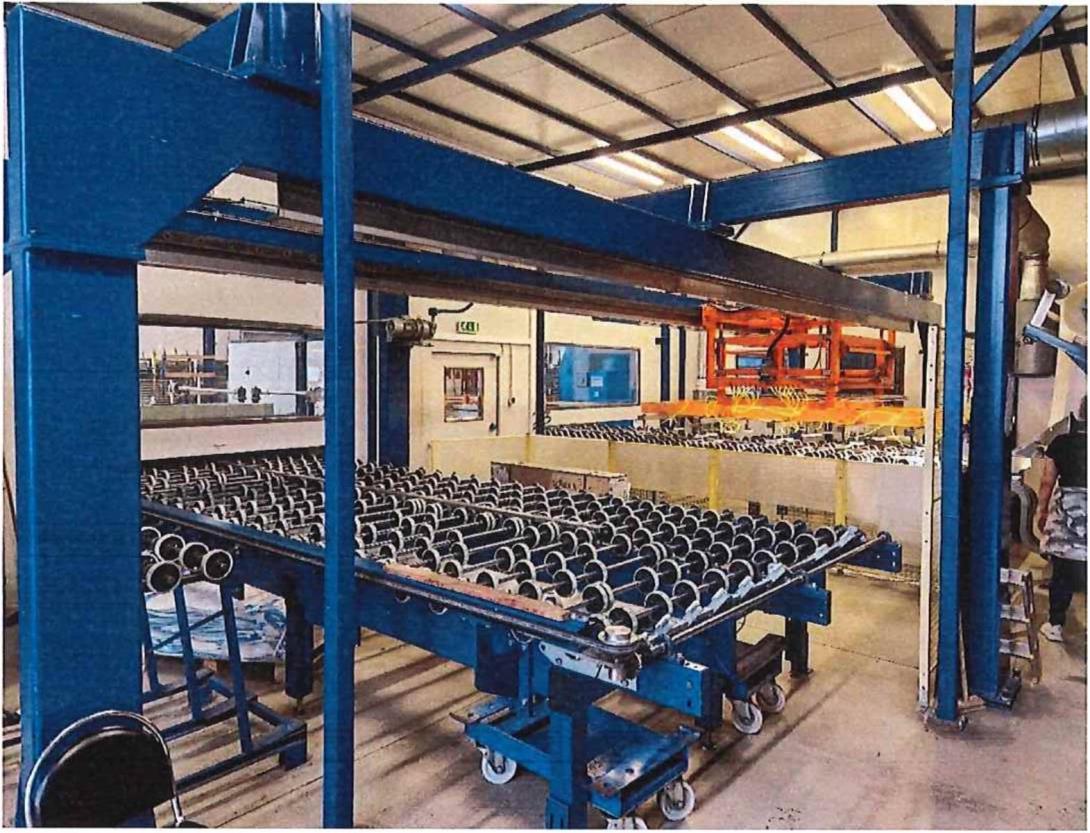

BOVONE LAMINATING LINE

BOVONE (2004) Lamination LIne Consisting of: Tilting table, washing machine, positioning table, portal table, film roll storage, folding table, transport table, pre-lamination oven with pressing unit, transport table and take-off tilting table. Glass thickness 3-12 mm Maximum assembled panel thickness 60 mm Min. panel size with automatic loading and unloading (normal cycle) 400 x 700 mm Min. panel size without automatic loading and unloading (small pieces cycle) 550 x 300 mm Max. panel size 2200 x 4500 mm Approximate average assembly time for a single panel (glass / PVB / glass) 70-100 seconds Worktop height: 950 mm +/- 20 mm Compressed air consumption | minimum 6 bar 400 l/h Demineralized water consumption (with water recycling system) 0.7 m3/8h Three-phase mains voltage: 400 V +10% Mains frequency: 50 Hz +2% Auxiliary voltage for cabinet lighting: 240 V single-phase Installed electrical power: 265 kW Estimated average electrical power consumption: 215 kW Small installation area: (U-shape)
