40 m3 crossed mixing system

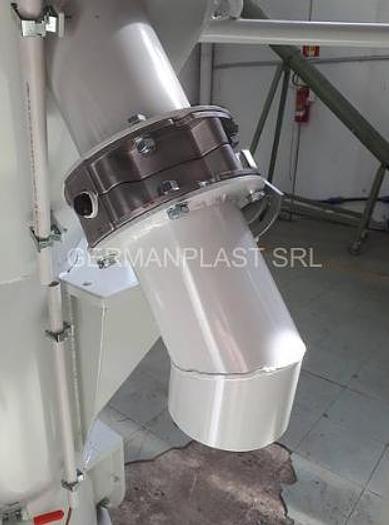

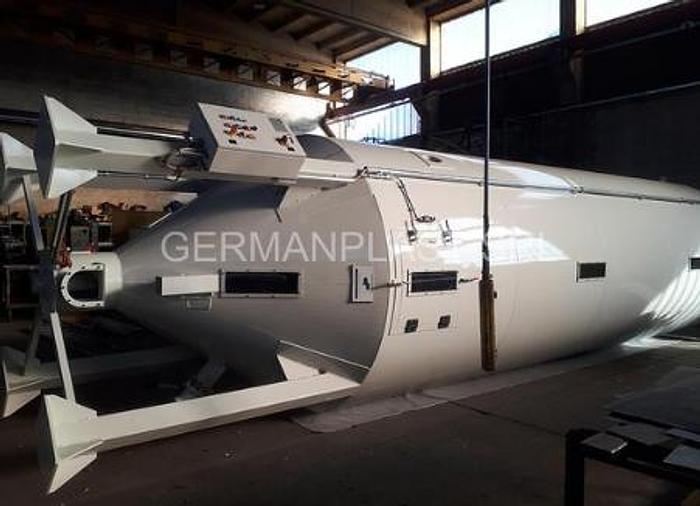

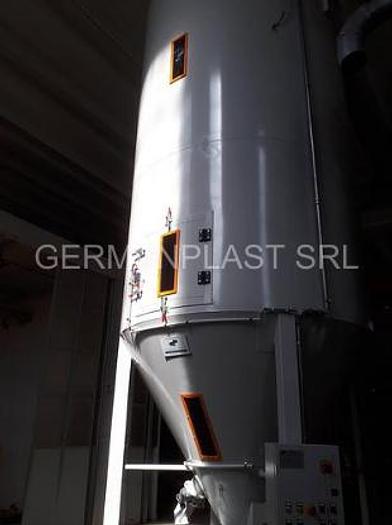

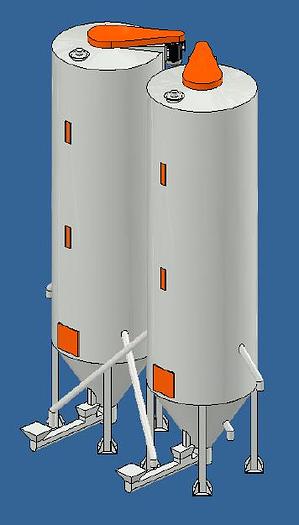

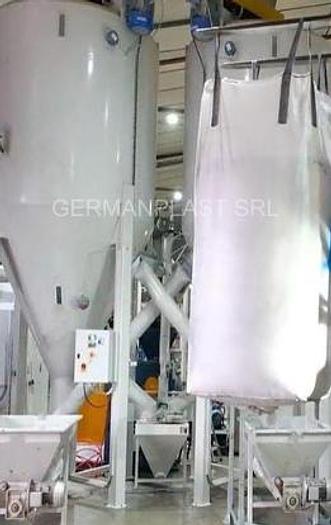

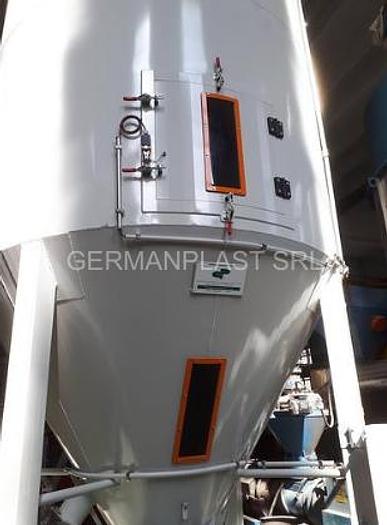

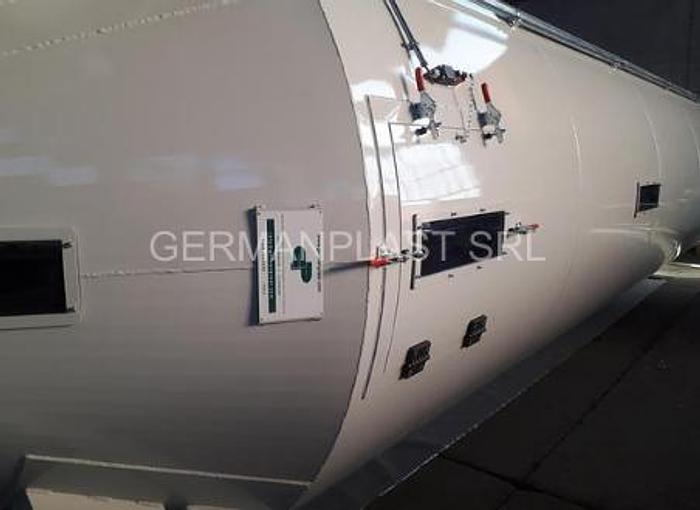

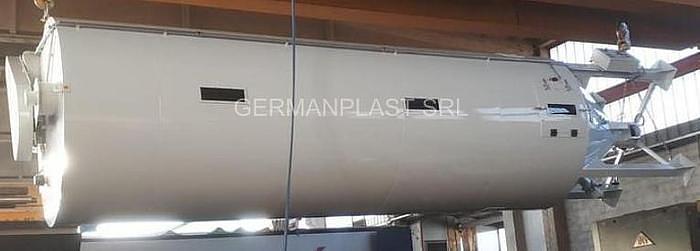

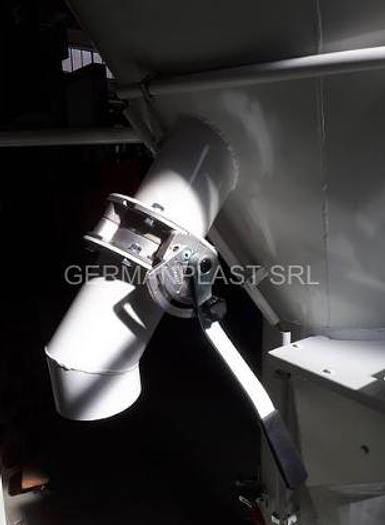

CROSSED MIXING SYSTEM FOR PLASTIC MATERIALS The system includes n.2 x 20.000 lt. vertical mixers which fill each other through the endless screw conveyor. for each mixer : total height approx 6.950 mm including transmission group max diam. 2.380 mm.(standard transport) constructed in painted electro-welded carbon steel. inner auger diam.350 mm. lower hopper with safety grid and sampling shutter, complete with anti-dust cover, mm.600×500 pulley and belt transmission, protected by carters inspection doors with safety limits cleaning hinged door with on bottom of cone for complete discharging, with safety opening bottom discharging pipe on the other mixer'shopper with pneumatic valves side discharging pipe to big bag with valve mm. at 2.700 mm from ground with pneumatic valves electric min/max level indicator, paddle type N.1 loading hopper with conveying screw to one of the 2 mixers discharging pipe with valve to central collection hopper electric motor 15 kw dust sleeve on top complete with control panels for each mixer. electric voltage: 400 V, 50 Hz, auxiliaries a.c. 24 V CE compliance, drawings and instructions manual in English. --------------------------------------------------------------------------------------- N.2 BIG BAG HOLDING STRUCTURES sturdy steel structures positioned on opposite sides of the mixers -------------------------------------------------------------------------------------- Possible addition of weighing system with label printer for each structure
